RF High Frequency Meters

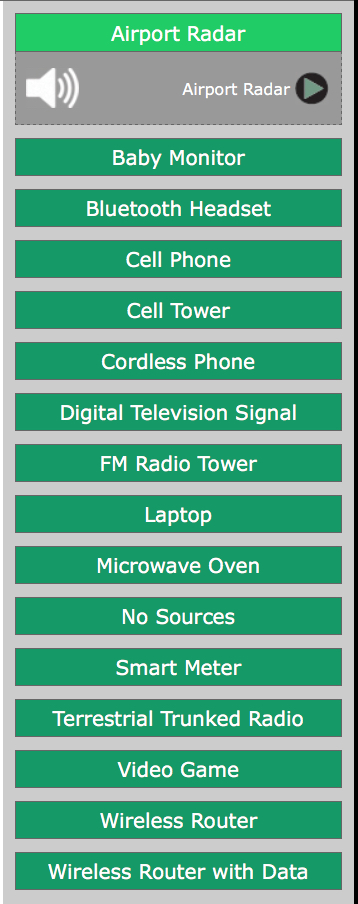

All of these RF meters have “Audio Analysis” to help you identify the type of source.



Acousticom 2 RF Meter  $199*

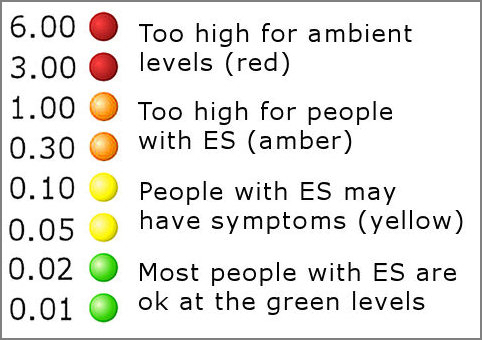

Acousticom 2 chart

Informative LED read out in V/m

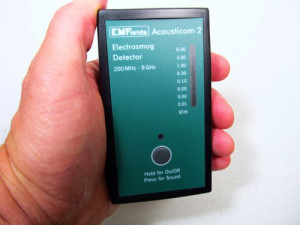

Acousticom 2 Hand held

Handy size for everyday use

A high quality single axis broadband RF meter that very easy to use, durable and fits in a shirt pocket or purse so you can take it everywhere.  It is so small and easy to conceal you can use it without attracting undesired attention.  The row of eight flashing, multi-colored LED lights indicates the peak RF level at a quick glance and the built in sound speaker helps you identify the type of RF source you are measuring.  The Accousticom 2 has a very wide RF frequency range of 200 MHz to 8GHz.  Watch the excellent instructional video for complete details.

Click Here to order or get more information  *Contact me for the discount code

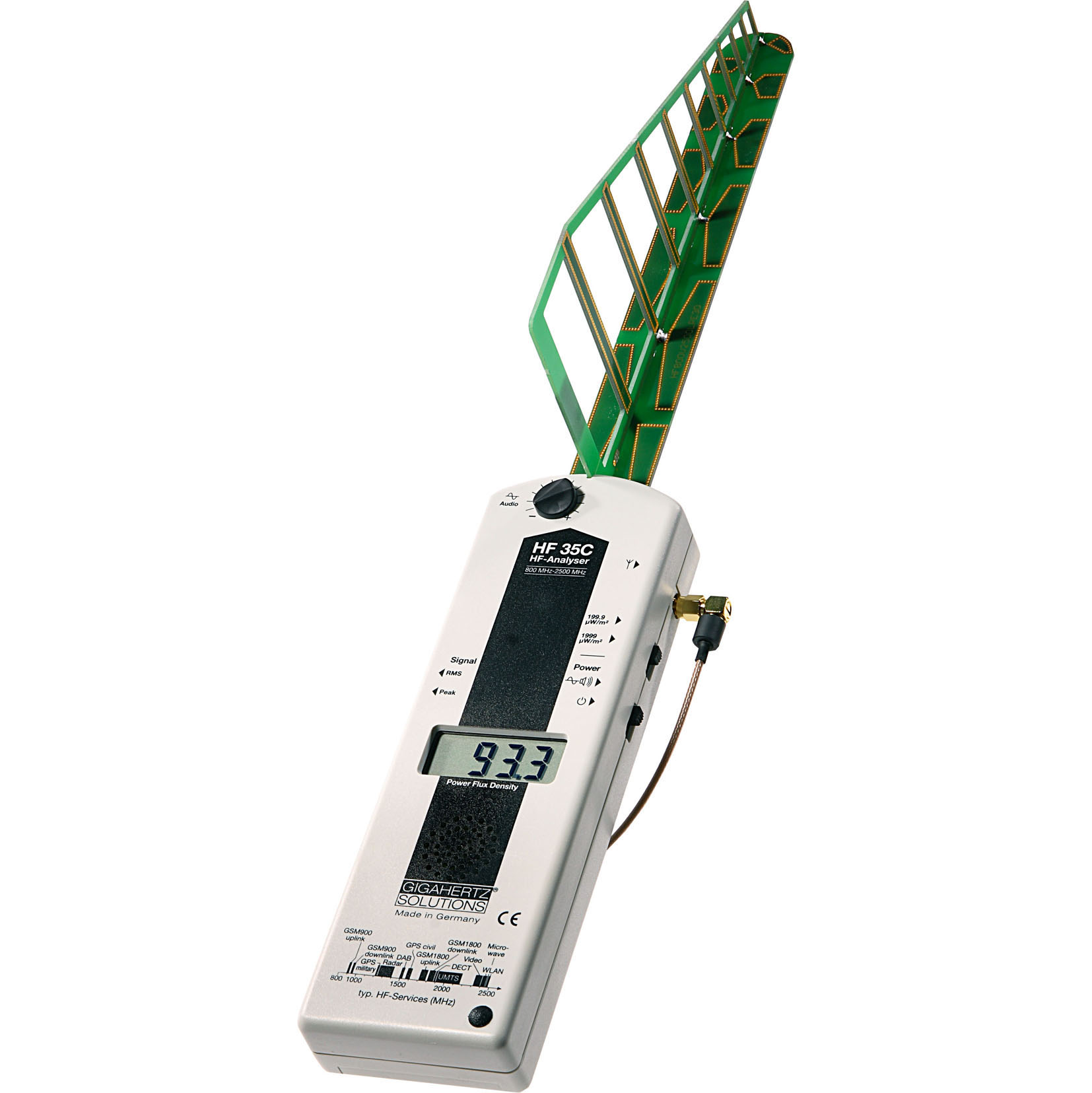

HF35C RF Meter by Gigahertz Solutions  $347HF35C RF Meter (RF Analyzer / RF Analyser) By Gigahertz Solutions

This was my first RF meter and I still use it today as a directional RF source finder on my EMF assessments.  It is a single axis broadband RF with a range of 700 MHz to 2.7 GHz best used to determine the direction of an RF source.  It does require assembly before use, is not compact nor immune to rough handling: mine has held up very well considering the amount of use it gets.  It has an adjustable audio speaker to aid in identification of the signal source.  Gigahertz Solutions meters are unsurpassed for accuracy and quality for the price. The HF35C will command immediate attention when you display it and people will be very curious: When I used it on passenger airplanes to measure the WiFi radiation in the cabin a pair of visibley concerned flight attendants usually appeared in short order. Watch the excellent instructional video for complete details.

Click Here to order or get more information  *Contact me for the discount code

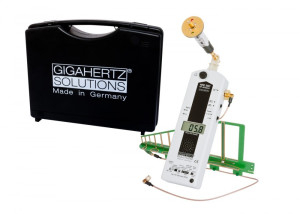

HFE35C RF Meter Kit by Gigahertz Solutions  $743HFE35C kit

This meter is based on the HF35C with the addition of the UBB27 Omni-Directional Antenna which measures down to 27 MHz and pick up things that would otherwise be missed. It comes with both antennas. The UBB27 Antenna will provide you a much more accurate measurement of the total exposure your body will receive from all directions due to reflection of the RF from objects in the area. It is required to determine the total RF exposure when indoors where reflection is a major factor. Although it is an excellent meter I acquired and use the HFE59B RF Meter Kit described below. Watch the excellent instructional video for complete details.

Click Here to order or get more information  *Contact me for the discount code



RF Data Log Milas

Overnight RF Data Log of Cell Tower: Rocklin, CA.

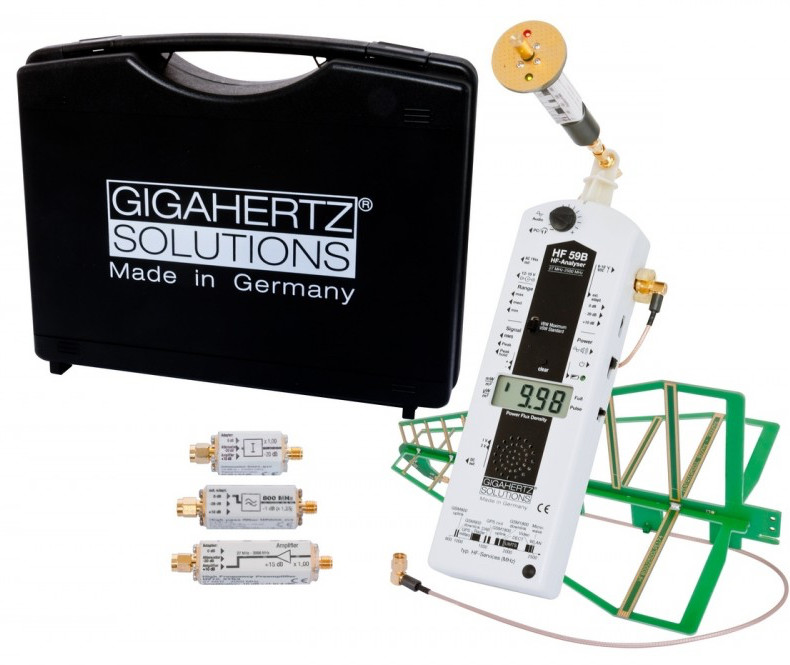

HFE59B RF Meter Kit by Gigahertz Solutions  $1,831

The HFE35B RF Meter Kit is a professional level RF meter designed for Building Biologists with a range of 27 MHz to 3.3GHZ.  I use it on every assessment. With the included antenna signal amplifiers and attenuators it can measure and record RF power densities from 0.001  µW/M^ up to 2,000,000 µW/M^.  In addition to peak and average readings it also provides the essential “Peak Hold” setting.

If you want to capture an RF data log of  smart meter or a cell tower you need the features of this meter. It sends data to an NFA series Gigahertz Solutions meter so you can record RF radiation power density over hours, days or weeks.  The color charts and graphs it produces are indisputable and authoritative. Watch the excellent instructional video for complete details.

Click Here to order or get more information  *Contact me for the discount code
